MC84R Rotary Cutting Machine 380V PLC Control for Tea Vegetables

MC84R Rotary Cutting Machine 380V PLC Control for Tea Vegetables
MC84R Rotary Cutting Machine 380V PLC Control for Tea Vegetables MC84R Rotary Cutting Machine 380V PLC Control for Tea Vegetables MC84R Rotary Cutting Machine 380V PLC Control for Tea Vegetables MC84R Rotary Cutting Machine 380V PLC Control for Tea Vegetables MC84R Rotary Cutting Machine 380V PLC Control for Tea Vegetables MC84R Rotary Cutting Machine 380V PLC Control for Tea Vegetables

تصویر بزرگ :  MC84R Rotary Cutting Machine 380V PLC Control for Tea Vegetables

جزئیات محصول:

محل منبع: گوانگدونگ ، چین
نام تجاری: Osay

پرداخت:

مقدار حداقل تعداد سفارش: 1
قیمت: US$140,000
توضیحات محصول جزئیات
بعد: 1881*1116*2160 قدرت: 9.15 وات
ولتاژ: 380 ولت ± 38 ولت وزن: 4000 کیلوگرم
دمای محیط زیست: 10-40 درجه سانتیگراد رطوبت نسبی: 80 ٪
ارتفاع: 2000 متر حالت کنترل: Servo Drive+PLC+صفحه لمسی
عرض برش: 0.5-1.5 میلی متر ظرفیت انباشت مواد: 120 کیلوگرم در متر مربع
ظرفیت: 3000 کیلوگرم در ساعت ارتفاع درب چاقو: 75 میلی متر
عرض درب چاقو: 400 میلی متر تعداد تیغه ها: 8
سرعت برش: 50-300 دور در دقیقه طول عمر تیغه: 98 ساعت
برجسته کردن:

380V rotary cutting machine,PLC control tea cutter,vegetable cutting machine for tea

,

PLC control tea cutter

,

vegetable cutting machine for tea

MC84R Rotary Cutting Machine for Vegetables Tea with Auto Sharpening System PLC Control
Product Attributes
Attribute Value
Application Vegetables, tea or similar materials
Warranty 1 Year
Dimension (l*w*h) 1881*1116*2160
Power (w) 9.15
Voltage 380V±38V
Weight (kg) 4000
Video outgoing-inspection Provided
Machinery test report Provided
Core components PLC
Environmental temperature 10-40 ℃
Relative humidity not exceeding 80%
Altitude not exceeding 2000m
Incoming materials tea/vegetables/herbs
Control mode servo drive+PLC+touch screen
Product Description

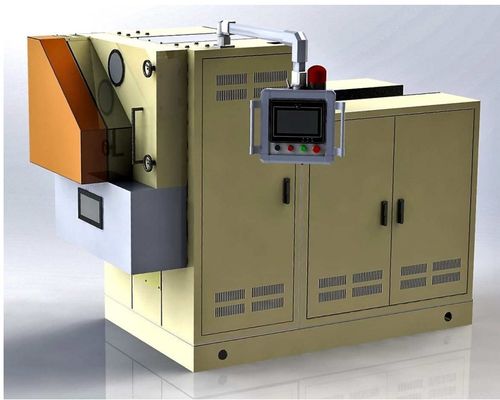

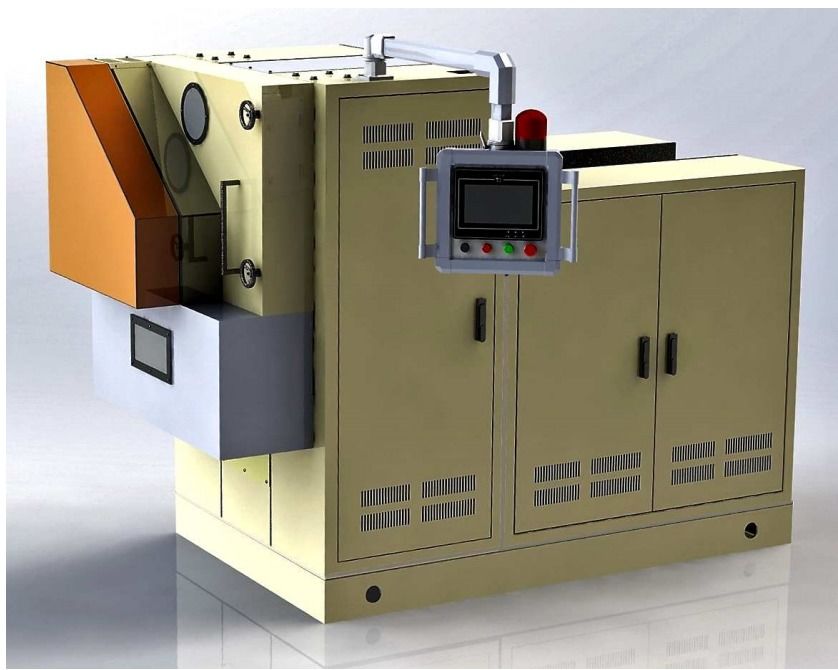

The MC84R rotary cutting machine is a specialized machine developed independently by our company for cutting vegetables, tea leaves, or similar materials. The MC84R rotary cutting machine consists of a body, feeding belt, compacting belt, cutter head, automatic sharpening device, automatic feeding device, and control system.

This machine adopts our company's innovative proprietary technology and automatic control systems such as servo drive, PLC, and touch screen, which can set and operate multiple parameters to meet different production needs.

Key Features
  • High-Precision Cutting - Sharp rotary blades deliver uniform cuts for tea, herbs, vegetables, and dry materials.
  • Fully Automated Operation - Equipped with servo drive, PLC, and touchscreen control for easy parameter adjustment.
  • Auto Blade Maintenance - Integrated sharpening and feeding system extends blade life and reduces downtime.
  • Multi-Parameter Settings - Adjust cutting thickness, speed, and pressure for different materials.
Technical Specifications
Project Unit Parameter
Cutting width mm 0.5-1.5
Material reference stacking capacity kg/m³ 120
Rated capacity (with a cutting width of 1mm) kg/h 3000
Knife door height mm 75
Knife door width mm 400
Number of blades Piece 8
Cutterhead speed rpm 50-300
Blade lifespan Hr 98
Product Images
MC84R Rotary Cutting Machine 380V PLC Control for Tea Vegetables 0 MC84R Rotary Cutting Machine 380V PLC Control for Tea Vegetables 1 MC84R Rotary Cutting Machine 380V PLC Control for Tea Vegetables 2 MC84R Rotary Cutting Machine 380V PLC Control for Tea Vegetables 3
Company Profile

Hainan Osay Technology Group Co., Ltd., an innovative company that specializes in manufacturing and supply of spare parts for tobacco machinery, as well as providing top-notch technical services to tobacco industry.

We understand that the tobacco industry is ever-evolving, and we are ready to adapt to the changing landscape. Our knowledgeable team stays informed about the latest industry trends to provide our customers with cutting-edge solutions that meet their specific needs and requirements.

Our comprehensive range of products includes spare parts for cigarette making, packing machine and filter making machine. We also supply customization service as drawing or sample of the parts from clients. Each product is meticulously crafted to meet the requirements and standards of the tobacco industry.

MC84R Rotary Cutting Machine 380V PLC Control for Tea Vegetables 4 MC84R Rotary Cutting Machine 380V PLC Control for Tea Vegetables 5 MC84R Rotary Cutting Machine 380V PLC Control for Tea Vegetables 6 MC84R Rotary Cutting Machine 380V PLC Control for Tea Vegetables 7 MC84R Rotary Cutting Machine 380V PLC Control for Tea Vegetables 8 MC84R Rotary Cutting Machine 380V PLC Control for Tea Vegetables 9 MC84R Rotary Cutting Machine 380V PLC Control for Tea Vegetables 10 MC84R Rotary Cutting Machine 380V PLC Control for Tea Vegetables 11 MC84R Rotary Cutting Machine 380V PLC Control for Tea Vegetables 12
