HLP Machine Magnetic Sensitive Defective Cigarette Detector Loose End Missing Filter

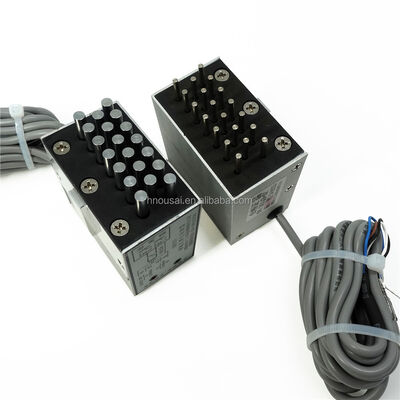

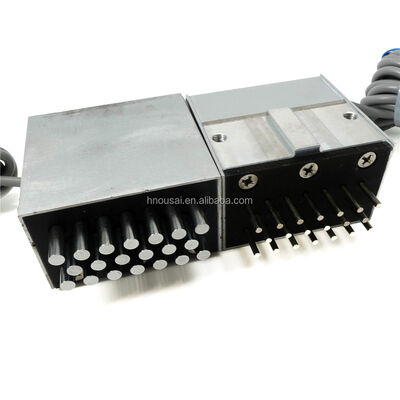

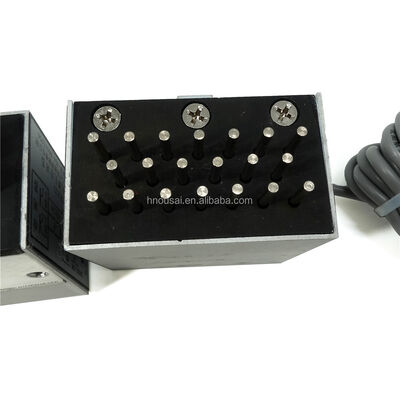

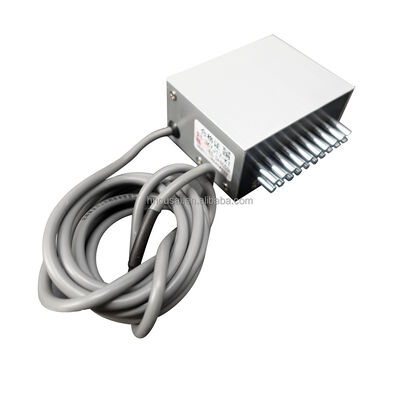

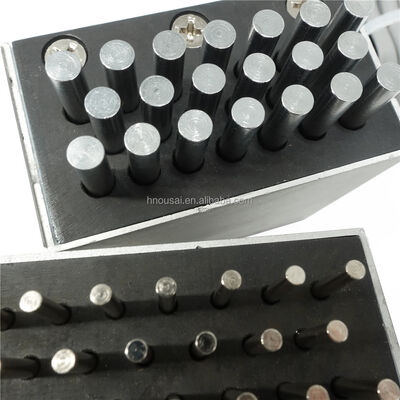

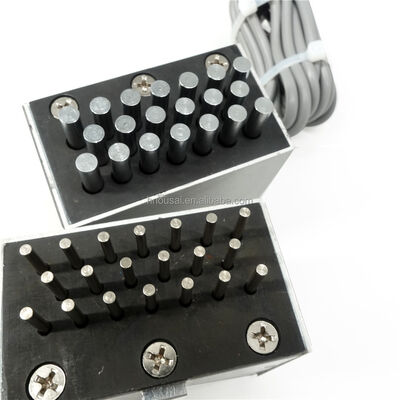

تصویر بزرگ : HLP Machine Magnetic Sensitive Defective Cigarette Detector Loose End Missing Filter

جزئیات محصول:

محل منبع:	چین

پرداخت:

مقدار حداقل تعداد سفارش:	1
قیمت:	$350

مخاطب

توضیحات محصول جزئیات

ظرفیت تولید:	10000 عدد در ماه	نوع رانده:	برقی
درجه خودکار:	نیمه اتوماتیک	وزن (کیلوگرم):	8
گارانتی:	1 سال	نکات کلیدی فروش:	خودکار
نام محصول:	آشکارساز فیلتر خالی انتهایی را شل کنید	اندازه:	سایز پادشاه/ملکه/سوپرلیم
استفاده:	Sasib 3000/ Sasib 6000 / HLP2	ولتاژ اصلی:	24 ولت سی سی
ویژگی:	عمر عملکردی طولانی	بسته:	کارتن/چوبی
گواهی:	CE / ISO	برنامه:	سیگار، تنباکو
وضعیت:	جدید	صنایع قابل اجرا:	کارخانه تولیدی، فروشگاه های پوشاک، خرده فروشی، تعمیرگاه های ماشین آلات
مکان نمایشگاه:	هیچ کدام
برجسته کردن:	HLP machine cigarette detector,magnetic sensitive cigarette detector,defective cigarette filter detector , magnetic sensitive cigarette detector , defective cigarette filter detector

Product Overview

A cigarette testing device for cigarette packaging machines located at a point in the manufacturing process just before the cigarettes are placed into cigarette packages, for simultaneously testing the ends of cigarettes disposed in a group. Magnetic Sensitive Loose-end Missing Filter Defective Cigarette Detector is a cigarettes location detection system, built-in 20 displacement magnetoelectric converters, used for dectecting the loose-end and missing filter rod, if the cigarette was detected loose-end or missing filter, the sensor will output signal, for rejecting the cigarettes into the pack. This system includes a probe in the form of a split fiber optics bundle located adjacent a conveyor or other transport means for cigarettes which travel along the conveyor with their axes substantially normal to the direction of travel of the conveyor. The fibers of the bundle are divided randomly and one branch extends to a light source and the other to a detector. In this fashion, light will be directed from the probe towards the tobacco end of the traveling cigarettes. The reflected light is transmitted through the other branch to the detector which is coupled with a bridge circuit for measuring the level of intensity of the reflected light. When a loose cigarette end is detected, either a memory circuit or wheel is actuated in order that the cigarette having the detected loose end will be eventually rejected by an ejection mechanism.

Company Profile

Hainan Osay Technology Group Co., Ltd.

Hainan Osay Technology Group Co., Ltd., an innovative company that specializes in manufacturing and distribution of spare parts for tobacco machinery, as well as providing top-notch technical services to tobacco industry. Furthermore, we understand that the tobacco industry is ever-evolving, and we are ready to adapt to the changing landscape. Our knowledgeable team stays informed about the latest industry trends to provide our customers with cutting-edge solutions that meet their specific needs and requirements. Since established in 2021, our primary focus has been to continuously work towards becoming a reliable and preferred supplier by maximizing customer satisfaction. By consistently delivering high-quality products and exceptional services, we have earned the trust of our valued clients from Europe, America, Middle East, Africa, Southeast Asia.

Customized Solution

Our comprehensive range of products includes spare parts for cigarette making & packing machine, filter making machine. Main fast moving spare parts like garniture tape, nylon & steel suction tape, blade & knife, tongue piece, filter & cigarette tray, brush, etc. We also supply customization service as drawing or sample of the parts from clients. Each product is meticulously crafted to meet the requirements and standards of the tobacco industry. With over a decade of specialized experience in tobacco machine spare part manufacturing, we excel in meeting OEM/ODM requirements while delivering cost-effective, high-quality tobacco machinery. Additionally, our flexibility extends to customizing sizes, ensuring a tailored solution for every need.

FAQ

Q1: How can I get the samples? A: Normal wearing parts can send free, but shipping cost need to be covered by buyer. Q2: Are you a manufacturer? A: Yes, We are a professional precision machining manufacturer for over 15+ year's experience. Q3: How long is your delivery time? A: General stock products are for a week. Q4: What is your terms of payment? A: 100% full payment before shipment by T/T, WesternUnion, Paypal, etc. * Hainan Osay Technology Group Co., Ltd. is always here to support tobacco industry with good quality of goods
and service. For more information, please visit our website https://hnousai.en.alibaba.com.

Hainan Osay Technology Group Co., Ltd., an innovative company that specializes in manufacturing and supply of spare parts for tobacco machinery, as well as providing top-notch technical services to tobacco industry. We understand that the tobacco industry is ever-evolving, and we are ready to adapt to the changing landscape. Our knowledgeable team stays informed about the latest industry trends to provide our customers with cutting-edge solutions that meet their specific needs and requirements.

Our comprehensive range of products includes spare parts for cigarette making, packing machine and filter making machine. We also supply customization service as drawing or sample of the parts from clients. Each product is meticulously crafted to meet the requirements and standards of the tobacco industry.
